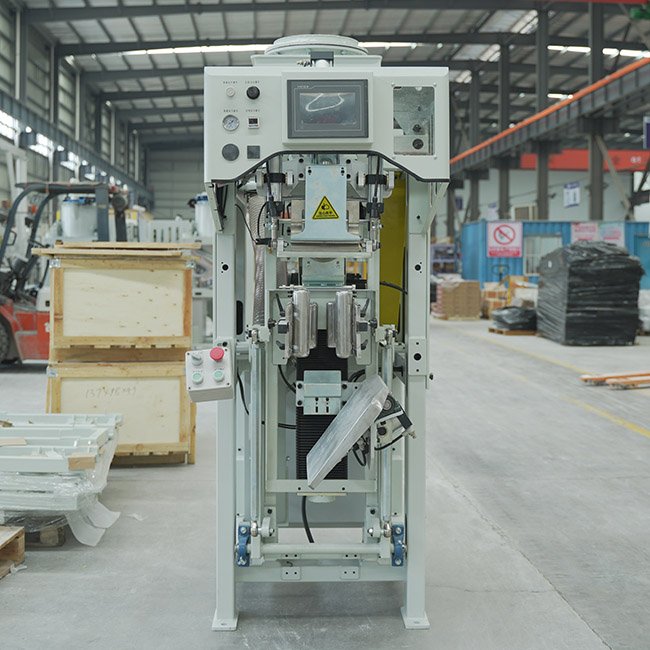

Impeller Rotary Valve Bag Packing Machine

Packing Machine

The impeller rotary valve bag packing machine is a high-speed powder packaging equipment with forced feeding by rotating impellers, specially designed for conventional dry mortars with good fluidity, uniform particles and no easy caking. With simplified structure, stable operation and fast packaging speed, it is driven by a motor to rotate the closed impeller at a constant speed to push materials into bags quantitatively, realizing automatic quantitative packaging with the intelligent weighing control system. The single machine hourly capacity can reach 8–12 tons. It has low cost, low failure rate and convenient operation and maintenance. It is a standard packaging equipment for general dry powder materials such as masonry mortar, plastering mortar, ordinary tile adhesive and cement, and is widely used in various conventional dry mix mortar production lines.

Display product

Working Principle: The motor drives the closed impeller to rotate continuously, and the dry powder materials are quantitatively conveyed through the blade volume and sent into valve bags at a constant speed; the real-time weighing system accurately monitors the bag weight. When reaching the set weight, the impeller automatically stops to cut off materials, and the cylinder releases the bag to complete the packaging operation.

Product Advantages: Forced impeller feeding ensures fast packaging speed and high capacity, suitable for mass production; extremely simple structure with few parts, low failure rate and stable operation; light body can be directly installed under the finished product silo with minimal floor space; low purchase and maintenance cost with outstanding cost performance; strong versatility and wide adaptation range for most conventional dry powder materials.

Packaging range	10-50kg
Packaging materials	Dry powder, gypsum mortar, putty powder or other powder
Packaging speed	≥240/h
Packaging precision	1%
Packaging bag size range	350mm*620mm
Operating voltage	380V
Working temperature	-10°~50°
Relative humidity	≤90% No condensation
Impeller power of packaging machine	7.5kw
Working pressure	≥0.6Mpa
Air consumption of impeller packaging machine	0.2m³/min
