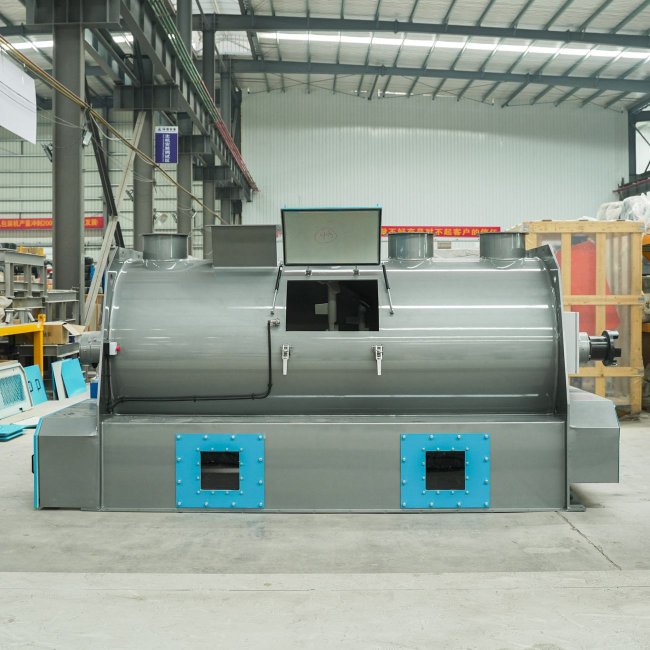

The dry mix mortar mixer is the core main equipment of the dry mix mortar production line. The mainstream adopts a twin-shaft gravity-free mixing structure. The two shafts rotate reversely and the paddles throw materials alternately to form a suspended fluidized mixing state, which completely eliminates mixing dead angles and realizes rapid and uniform fusion of heavy and light materials such as sand, cement, rubber powder and cellulose. The mixer cylinder is made of thickened wear-resistant steel plate with detachable wear-resistant lining plates inside, featuring strong wear resistance and long service life; it is equipped with a special sealed dust-proof structure to prevent dust leakage. It is suitable for the mixing operation of various ordinary and special dry mortars with various optional single machine volumes, adapting to production lines of different capacities, and is the core key equipment to ensure the quality of dry mortar finished products.
Applicable Materials: All dry powder building materials such as masonry mortar, plastering mortar, waterproof mortar, gypsum mortar, tile adhesive, thermal insulation mortar and putty powder.
Product Advantages: Gravity-free twin-shaft mixing without dead angles, material uniformity ≥98%; excellent mixing effect of heavy and light materials, eliminating stratification, agglomeration and caking; thickened wear-resistant cylinder and lining plates are wear-resistant, easy to maintain and long-service-life; closed dust-proof design is dust-free and environmentally friendly, suitable for industrial standardized production; strong adaptability, compatible with all dry mortar formulas and suitable for full-category production.
THZ series dry mortar mixer | THZ2000 | THZ3000 | THZ4000 | THZ6000 | |
Mixer model | THZ2000 | THZ3000 | THZ4000 | THZ4000-DZ | THZ6000 |
Mixer volume | 2000L | 3000L | 4000L | 4000L | 6000L |
Mixer Power | 22KW | 30KW | 37KW | 37KW | 55KW/75KW |
Mixer type | Single shaft mixer | Double shaft mixer | |||
Production Caoacity | 10Tph | 15Tph | 20Tph | 15Tph | 30Tph |
Cycle time | 180-200s | 180-240s | 180-240s | 200-300s | 180-240s |
